Resultant Force Of Trapezoidal Distributed Load

F 2 1 2 6 670 2010 N. Please note that you must integrate the numerator and denominator separately.

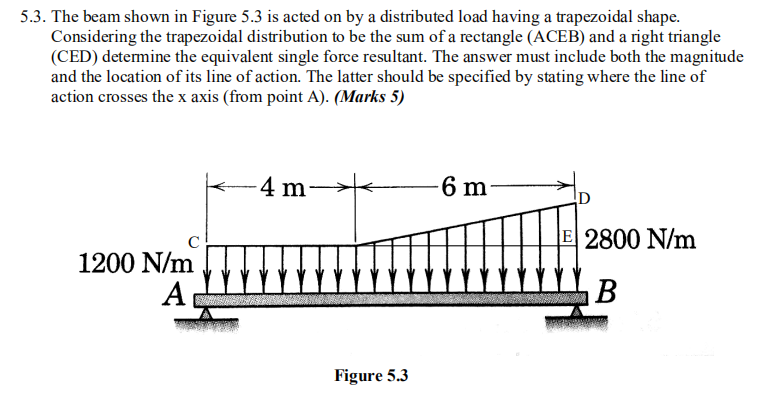

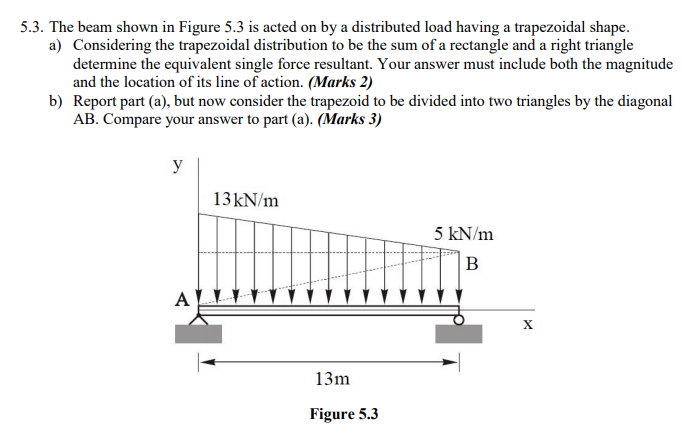

5 3 The Beam Shown In Figure 5 3 Is Acted On By A Chegg Com

Use the method of superposition and standard formulae from module 2 a Draw neat and fully labelled Shear Force Diagrams and Bending Moment Diagrams for each individual load and the resultant of combined loads 45 marks.

Resultant force of trapezoidal distributed load. Problem Under cruising conditions the distributed load acting on the wing of a small Solution Beam with trapezoidal load. One type of distributed load is a uniformly distributed load 6 Distrubuted Loads Monday November 5 2012. The resultant of parallel forces in space will act at the point where it will create equivalent translational and rotational moment effects in the system.

MAGNITUDE OF RESULTANT FORCE Consider an element of length dx. Recall the buoyancy force is equal to the weight of the water displaced. Analyzing Distributed Loads A distributed load.

Calculate the magnitude and position of the resultant load. A load applied across a length or area instead of at one point. What is a Distributed Load.

Distributed load the location of the resultant force is 13 of the length of the load from the larger end 5 kNm 4 m 4 m x m x x b m m 3 4 4 3 1 0 3 1 0 133 m 10 kN. If the loading on the object is a set of parallel discrete forces the resultant force is simply the sum of all the forces or F R F i. R 3330 N.

For a distributed load described by the function wx the force F is F Z L 0 wxdx. To be equivalent the point force must have a. One of 40 N pulling upward and the other of 10 N pulling downward.

5 Distrubuted Loads Monday November 5 2012 Distributed Loads. Distributed Loads on Beams Example 1 page 1 of 3. Click here to show or hide the solution.

And the location of that force X F R L 0 xwxdx F R L 0 xwxdx R L 0 wxdx. R d 3 F 1 4 F 2. The force magnitude dF acting on it is given as dF wx dx The net force on the beam is given by F R L dF L wx dx A Here A is the area under the loading curve wx.

If all forces are parallel to the y direction then the three scalar equations simplify to. Recall that this resultant force has the identical effect on the object as the original system of forces had. This traction is also a force per unit area and is a more general form of pressure.

Resultant force of a trapezoidal distributed load with sides 2 kNm and 5 kNm and base 10 m Sum of small areas times their centroids sum of areas OR intdAcentroidsumdA Equation to calculate the centroid of a complex area what over what. Thus the resultant force is 20 N to the right. The two distributed loads are inch 10 lbperin 12 lb 120 each.

In the previous section three scalar equations were derived that determine the position r of a force F R that represents the force resultant to a system of discrete forces. Magnitude equal to the the area or volume under the distributed load function. Then use the resultant diagrams to determine the maximum nominal average shear stress and the maximum bending stress 15 marks b Estimate the maximum total.

Spatial Parallel Force System. F 1 6 220 1320 N. Resultant force To obtain the resultant force acting on a submerged surface.

This is known as a distributed force or a distributed load. The buoyancy force is the resultant of all these distributed forces acting on the body. An apple is subject to two vertical forces.

The total downward force is. R w o 1 L 1 2 w o 2 w o 1 L. How to calculate the support reactions of a beam under a trapezoidal distributed loadUsing the principle of superposition a trapezoidal load on a beam can b.

The center of mass is a physical property the centroid is a geometric property. Resultant of uniformly distributed load. This equivalent replacement must be the resultant of the distributed loading as discussed in Section 47.

Begin equation W 2 times lb 120 2 times lb 100 lb 150 lb 590 end equation Since the beam and loading are symmetrical supports B and F share the load equally so. Draw the shear-force and bending-moment diagrams for this beam. If you sum the forces pulling to the left you get 40 N to the left and if you sum the forces pulling to the right you get 60 N to the right.

It is represented by a series of vectors which are connected at their tails. R F 1 F 2 1320 2010. Distributed load the location of the resultant force is 13 of the length of the load from the larger end 5 kNm 4 m 4 m x m x x b m m 3 4 4 3 1 0 3 1 0 133 m 10 kN.
